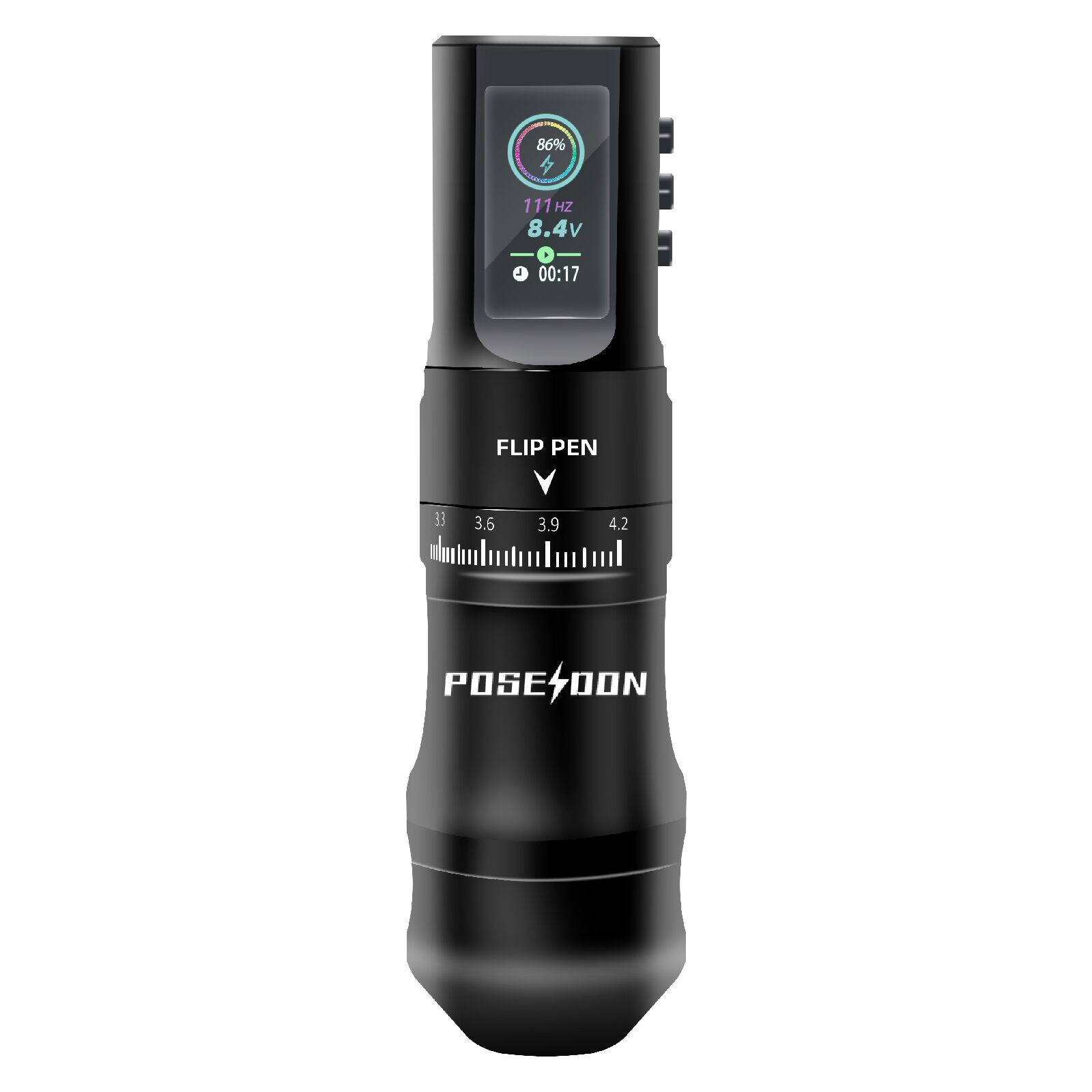

POSEIDON-YOLO ADJUSTABLE TATTOO PEN

🖊️ Tattoo Pen – Adjustable Stroke Professional Tattoo Machine

🧱 Lightweight Plastic Frame

🧩 Made with high-quality plastic frame
Lightweight, durable, and well-balanced for long tattoo sessions

🛠️ Five-Axis Precision Engraving Machining

🎯 Manufactured using five-axis precision engraving technology
Ensures high accuracy, smooth surfaces, and reliable internal structure

🔋 1800mAh Rechargeable Battery

🔋 Built-in 1800mAh battery
Provides stable power output for continuous tattooing TATTOO PEN

⚙️ Imported Coreless Motor

🚀 Equipped with an imported coreless motor (8V / 8000 RPM)
Delivers smooth power, low vibration, and quiet operation

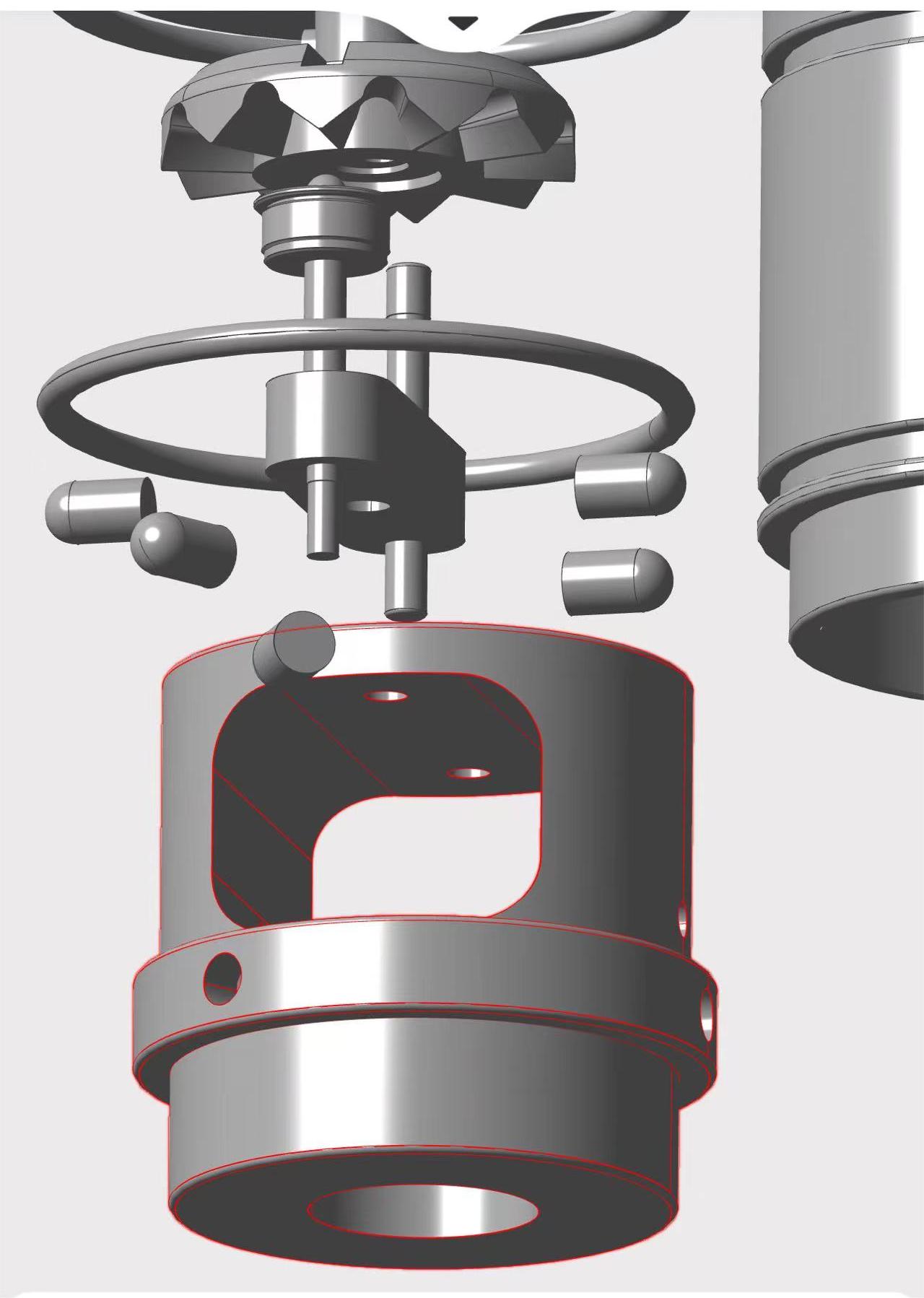

🔄 Camwheel Drive System

⚙️ Camwheel working principle ensures consistent needle movement
Improves control and reduces needle bounce

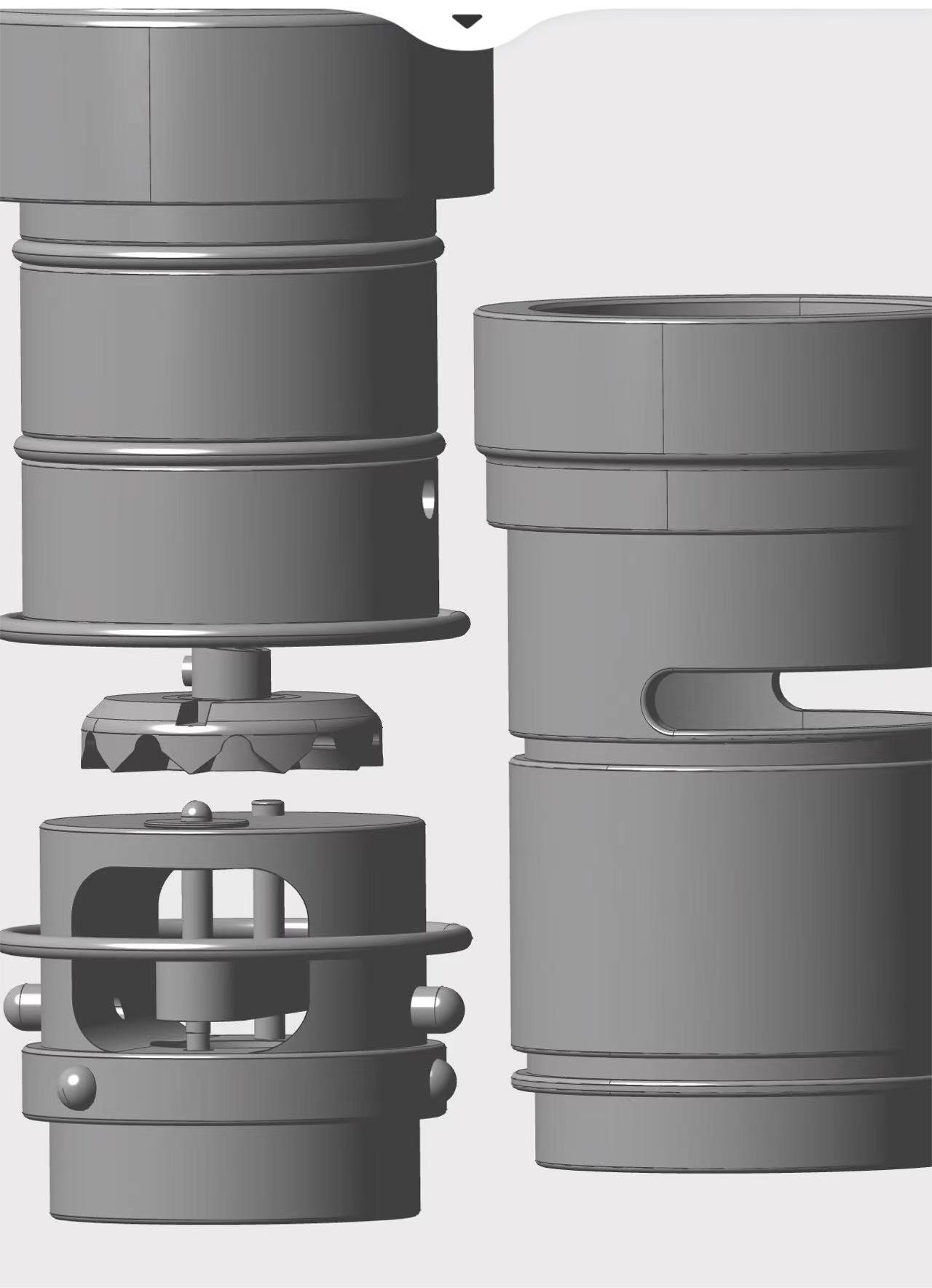

🎯 Adjustable Stroke System

📏 Stroke length adjustable from
2.4 / 2.7 / 3.3 / 3.6 / 3.9 / 4.2 mm
One machine for lining, shading, and color packing

🧷 Adjustable Needle Depth

📐 Needle length adjustable from 0 mm to 4.2 mm
Allows precise depth control for different skin types and techniques TATTOO PEN

⚡ Wide Voltage Range

⚡ Adjustable voltage from 4V to 12V
Easy customization for speed and power preferences

✋ Comfortable 38mm Grip

✋ 38mm ergonomic grip
Provides a stable hold and reduces hand fatigue during long sessions

📋 Technical Specifications

• 🧱 Frame Material: Plastic

• 🛠️ Technology: Five-axis precision engraving machining

• 🔋 Battery Capacity: 1800mAh

• ⚙️ Motor: Imported coreless motor, 8V / 8000 RPM

• 🔄 Working Principle: Camwheel

• 📏 Stroke: Adjustable 2.4–4.2 mm

• 🧷 Needle Length: 0–4.2 mm

• ⚡ Voltage Range: 4–12 V

• ✋ Grip Size: 38 mm

INSTRUCTIONS:

• Double-click power switch is JUMP START.
• Long press power switch is NORMAL START.

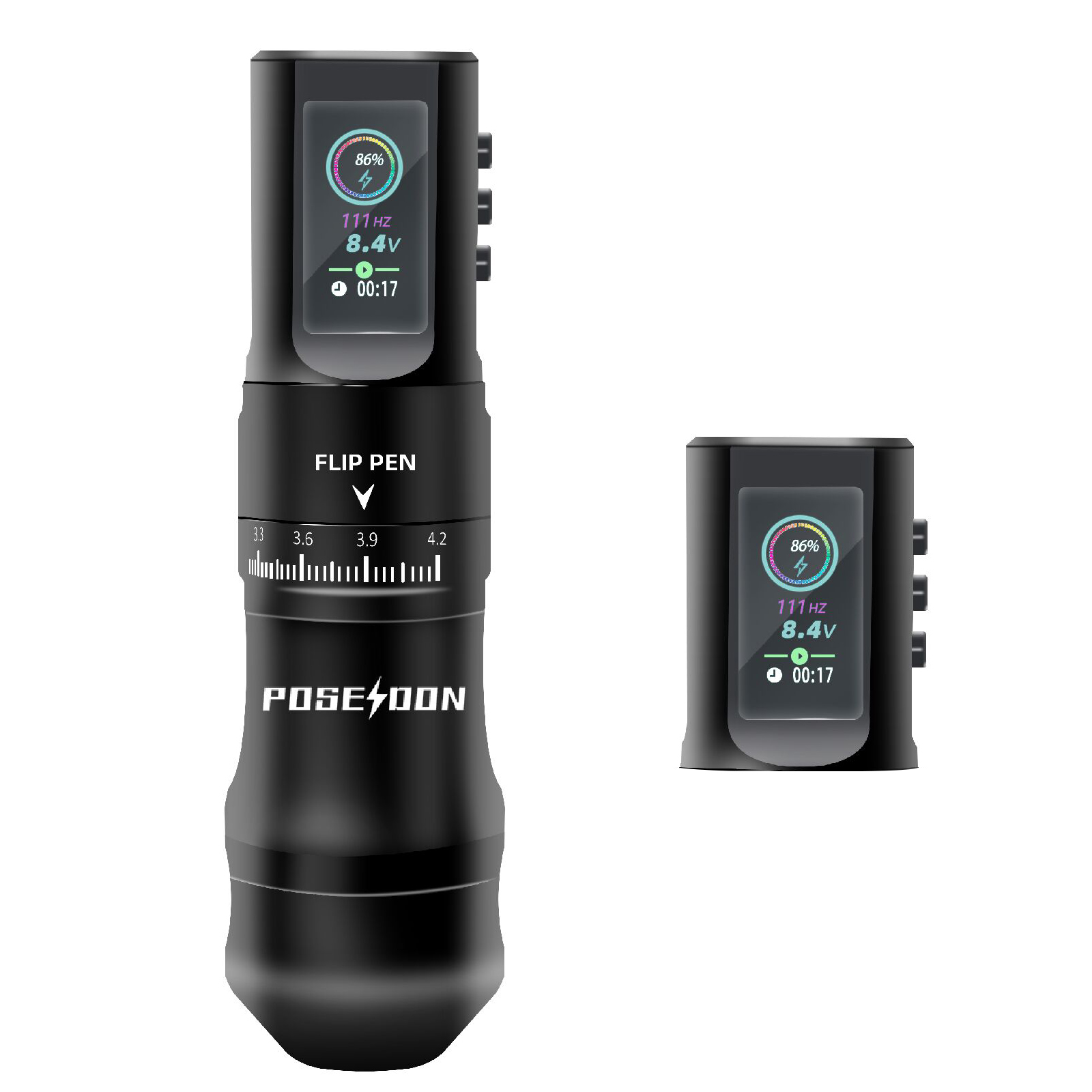

The tattoo pen has three buttons (power button, “-” , “+”) and the display screen is as follows:

1.  Long press the power button for 1.5s to turn on and off. the display will show the symbol  When turning on and off the pen.
2. Then short press the power button again to start the motor and start timing. The display will light up, meanwhile the display will show the working symbol. Press the power button again to pause. Double-click to clear. When there is no action on the button, the screen will darken for 10 seconds.
3. Double-click power button can turn on the pen quickly. The dispaly will show lightning symbol logo in JUMP START mode. Press the power button once again to start the motor at the highest voltage of 12V for 0.5s and then restore the setting voltage automatically.
4.  Voltage +/- key: Short press once to +/-0.1V, long press +/- to continuously +/- voltage. The voltage range is 4.0-12.0V and the default voltage is 8V.
5.  The display screen will dim automatically after 10 seconds and shut down after 5 minutes when not working.
6. The battery level is displayed in five levels (refer to 3.4-3.5-3.6-3.7-4.0V). When the voltage is lower than 3.0V, the power display flashes to remind (the entire battery icon flashes)TATTOO PEN
7.  TYPE-C charging: Should not work when charging. During charging, the entire screen only displays the charging symbol and the actual electricity, meanwhile flashes.
8. Automatic load detection: When the machine is loaded or unloaded, the voltage drops to 5V. It will automatically shut down if it cannot be plugged back in within 5 minutes. When re-plugged in the JUMP START mode, it will last for 0.5s and then restore the set working voltage.
9. When the motor is working, if the motor is stalled or short-circuited, the abnormal code E1 will appear on the display; if it is detected that the motor is stalled after the machine is turned on again, E1 will also be displayed. When the output is over-current, OCP protection will shut down the output, and the display will prompt: E2.
10. Timing function: When the motor is working, the timing starts. When paused, the timing will stop. Double-click the power button to reset.
